MCP100-315DI/TO, Монитор питания 3.0...3.15V -40...+85С active low RESET
Код товара: 82819

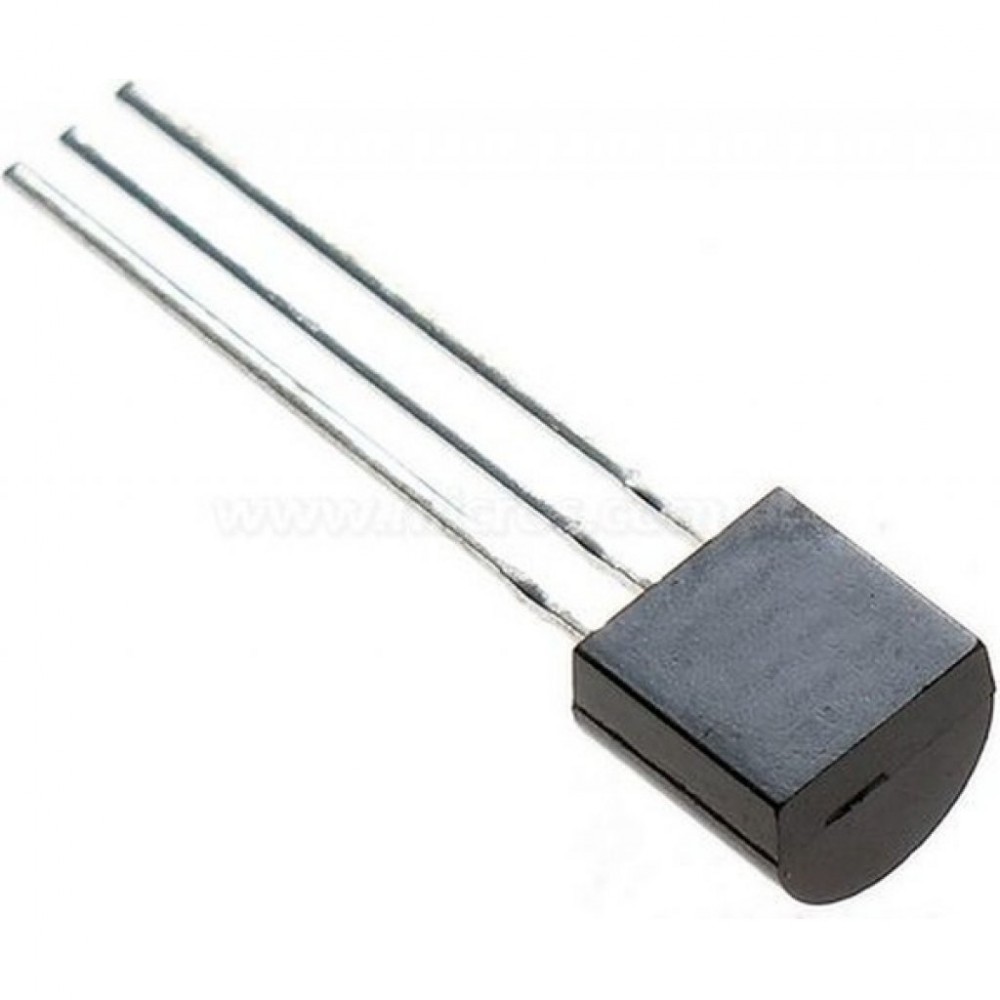

Изображения служат только для ознакомления
Цена от:
13,13 руб.
Технические параметры
Описание MCP100-315DI/TO
The MCP100-315DI/TO is a Microcontroller Supervisory Circuit with CMOS push-pull and active-low RESET output. The voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. It will assert the RESET/RESET signal whenever the voltage on the VDD pin is below the trip-point voltage.
• Holds microcontroller in reset until supply voltage reaches stable operating level
• Resets microcontroller during power loss
• Precision monitoring of 3, 3.3 and 5V systems
• 7 Voltage trip points available
• Accuracy of ±125mV for 5V systems and ±75mV for 3V systems over-temperature
• 45µA Typical operating current
| Тип | simple reset/power-on reset |
| Количество проверяемых напряжений | 1 |
| Выход | push-pull, totem pole |
| Сброс | active low |
| Сброс ожидания, мс (Min) | 150 |
| Пороговое напряжение, В | 3.075 |
| Рабочая температура, °C | -40…+85 |
| Корпус | to-92 |
| Вес, г | 0.3 |
