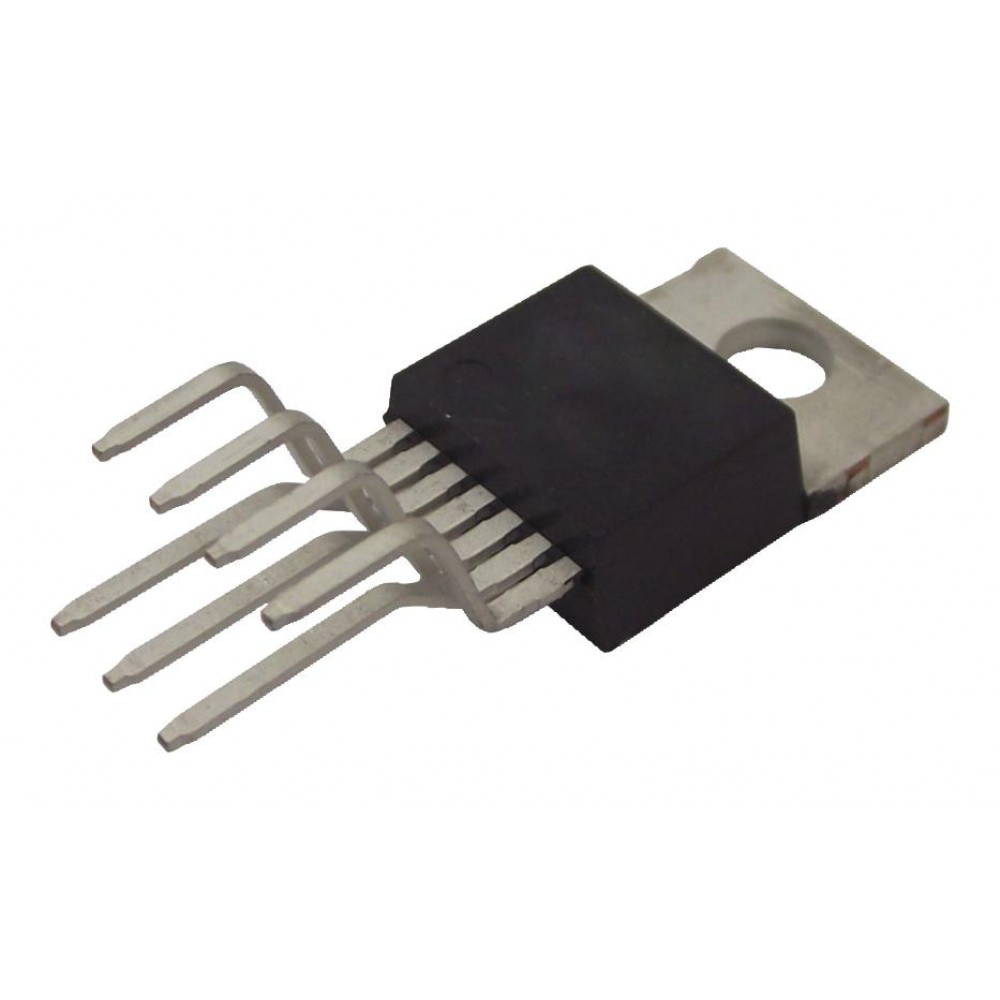

OPA548T, Операционный усилитель, 1 МГц
Код товара: 303319
Изображения служат только для ознакомления
Цена от:
1 732,68 руб.
Технические параметры
Описание OPA548T
The OPA548T is a high-voltage and high-current Operational Amplifier, ideal for driving a wide variety of loads. A laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high-output voltage and current. The OPA548T device operates from either single or dual supplies for design flexibility. In single-supply operation, the input common-mode range extends below ground. The OPA548T device is internally protected against over-temperature conditions and current overloads. In addition, the OPA548T device was designed to provide an accurate, user-selected current limit. Unlike other designs, which use a resistor in series with the output current path, the OPA548T device senses the load indirectly. This allows the current limit to be adjusted from 0 to 5A with a resistor and potentiometer or controlled digitally with a voltage-out or current-out DAC. The enable/status (E/S) pin provides two functions.
• 3A Continuous, 5A peak high-output current
• Wide output voltage swing
• Thermal shutdown and adjustable current limit protection
• Output disable control
• Thermal shutdown indicator
• 10V High slew rate
• Low quiescent current
• Green product and no Sb/Br
| Тип усилителя | с повышенной нагрузочной способностью |
| Кол-во каналов | 1 |
| Скорость нарастания выходного сигнала, В/мкс | 10 |
| Частота единичного усиления, МГц | 1 |
| Токовое смещение на входе, нА | 100 |
| Напряжение смещения на входе, мкВ | 2000 |
| Ток собственного потребления, мА | 17 |
| Выходной ток на канал, мА | 5000 |
| Напряжение питания однополярное(+)/двуполярное (±), В | +8...60, ±4...30 |
| Рабочая температура, °C | -40…+85 |
| Корпус | TO-220-7 (Formed Leads) |
| Вес, г | 4 |
opa548.pdf
