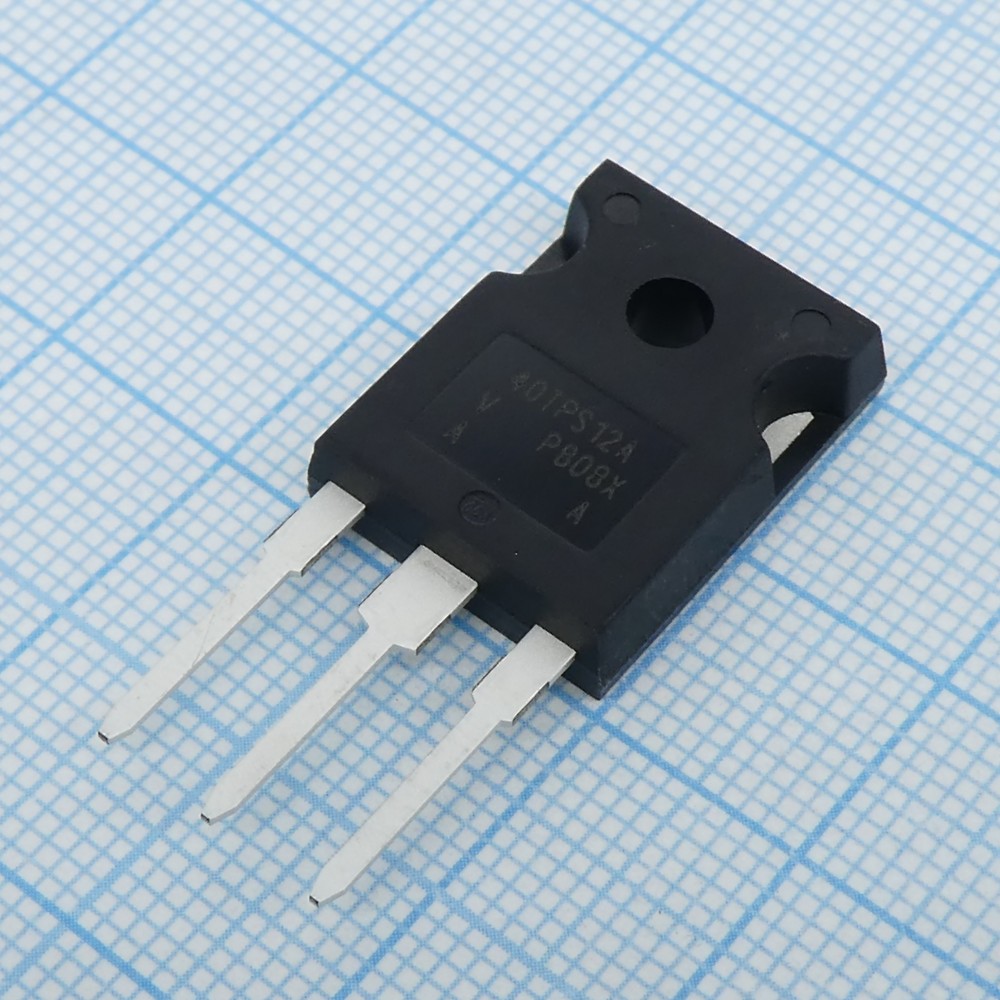

VS-40TPS12APBF, Тиристор 1200В 55А 40мА
Код товара: 256107
Цена от:
251,99 руб.
Нет в наличии
Описание VS-40TPS12APBF
The 40TPS12APBF is a 3-pin high-voltage Phase-control Thyristor, specifically designed for medium power switching applications. The PbF-series SCR has glass passivation technology used for reliable operation up to 125°C junction temperature.
• Designed and qualified according to JEDEC®-JESD 47
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Obsolete |
| HTS | 8541.30.00.80 |
| Package Width | 5.31(Max) |
| Package Length | 15.87(Max) |
| Mounting | Through Hole |
| Tab | Tab |
| Lead Shape | Through Hole |
| PCB changed | 3 |
| Package Height | 20.7(Max) |
| Maximum Rate of Rise of Off-State Voltage (V/us) | 500 |
| Maximum Rate of Rise of On-State Current (A/us) | 100 |
| Maximum Gate Trigger Voltage (V) | 2.5 |
| Maximum Gate Trigger Current (mA) | 150 |
| Surge Current Rating (A) | 600 |
| Maximum Holding Current (mA) | 200 |
| Repetitive Peak Reverse Voltage (V) | 1200 |
| Maximum Gate Peak Inverse Voltage (V) | 10 |
| Peak On-State Voltage (V) | 1.85@110A |
| Repetitive Peak Forward Blocking Voltage (V) | 1200 |
| Rated Average On-State Current (A) | 35 |
| RMS On-State Current (A) | 55 |
| Repetitive Peak Off-State Current (mA) | 0.5 |
| Phase Control | Yes |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 125 |
| Automotive | No |
| Standard Package Name | TO-247 |
| Pin Count | 3 |
| Supplier Package | TO-247AC |
| Military | No |
| Вес, г | 7.5 |
