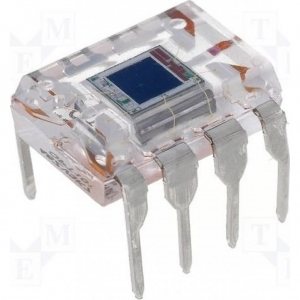

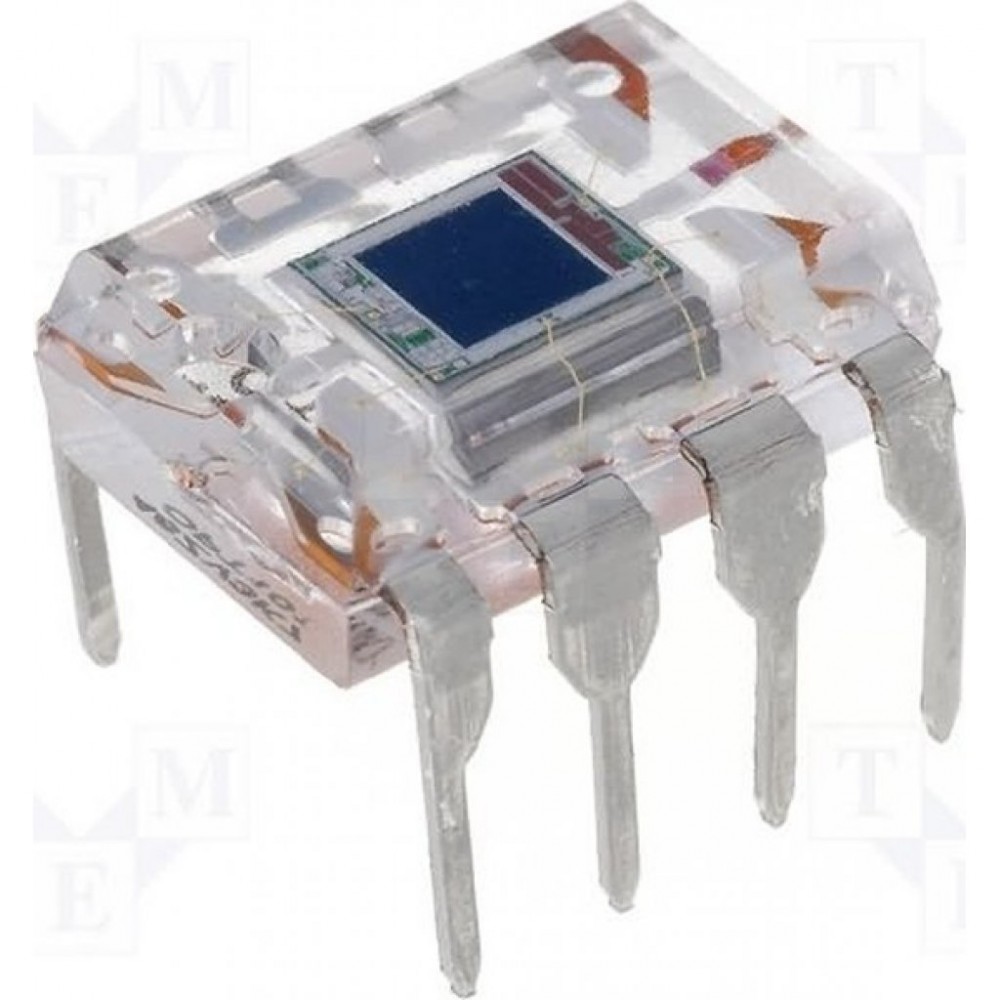

OPT101P, Photodetector 0.014MHz
Код товара: 225895
Изображения служат только для ознакомления
Цена от:
886,48 руб.
Описание OPT101P
The OPT101P is a 8-pin Monolithic Photodiode with on-chip trans-impedance amplifier. The integrated combination of photodiode and trans-impedance amplifier on a single chip eliminates the problems commonly encountered in discrete designs, such as leakage current errors, noise pick-up and gain peaking as a result of stray capacitance. Output voltage increases linearly with light intensity. The amplifier is designed for single or dual power supply operation. The 0.09 x 0.09" (2.29 x 2.29mm) photodiode operates in the photoconductive mode for excellent linearity and low dark current. The OPT101P operates from 2.7 to 36V supplies and 120µA quiescent current.
• 2.7 to 36V Single Supply
• 0.090 x 0.090" Photodiode Size
• 1MR Internal Feedback Resistor
• 0.45A/W (650nm) High Responsivity
• 14kHz Bandwidth
• 120µA Low Quiescent Current
| Тип | датчик освещенности |
| Длина волны,нм | 650 |
| Напряжение питания, В | 2.7…36 |
| Рабочая температура, С | 0…+70 |
| Корпус | R-PDIP-T8 |
| Вес, г | 1 |
