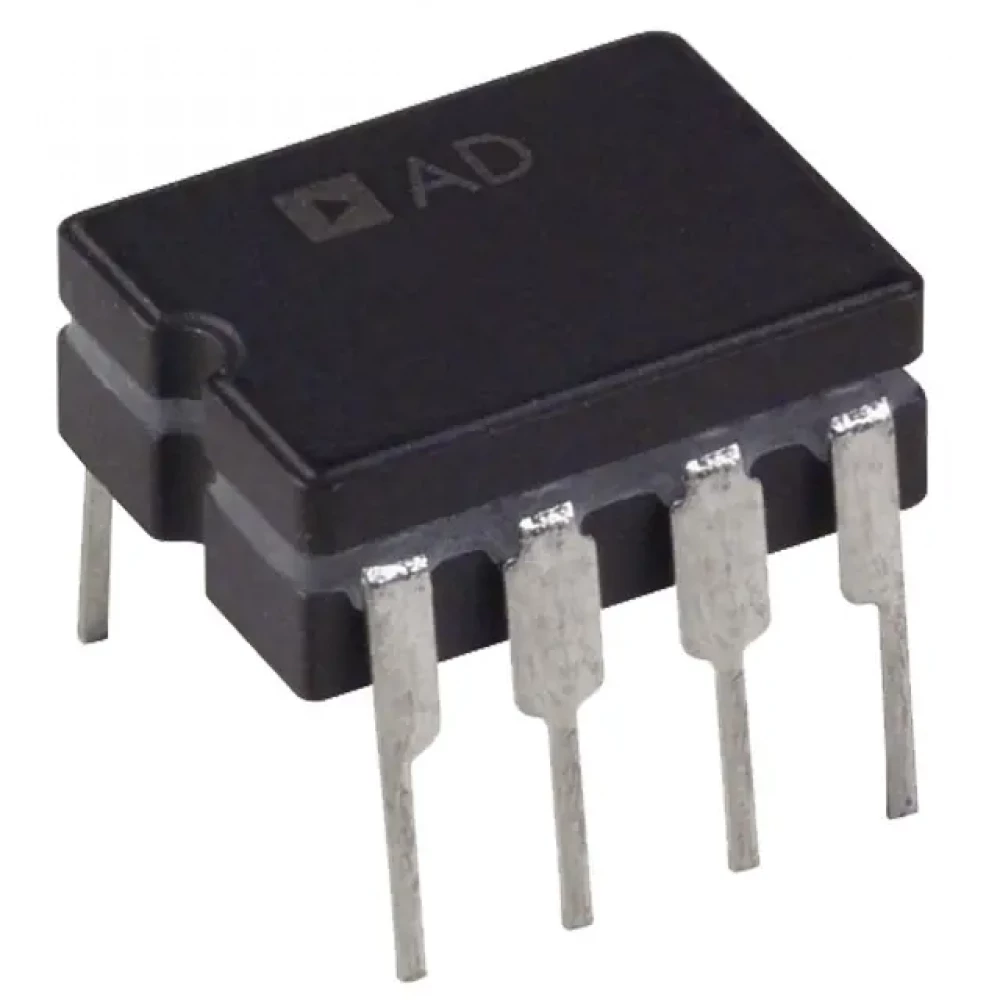

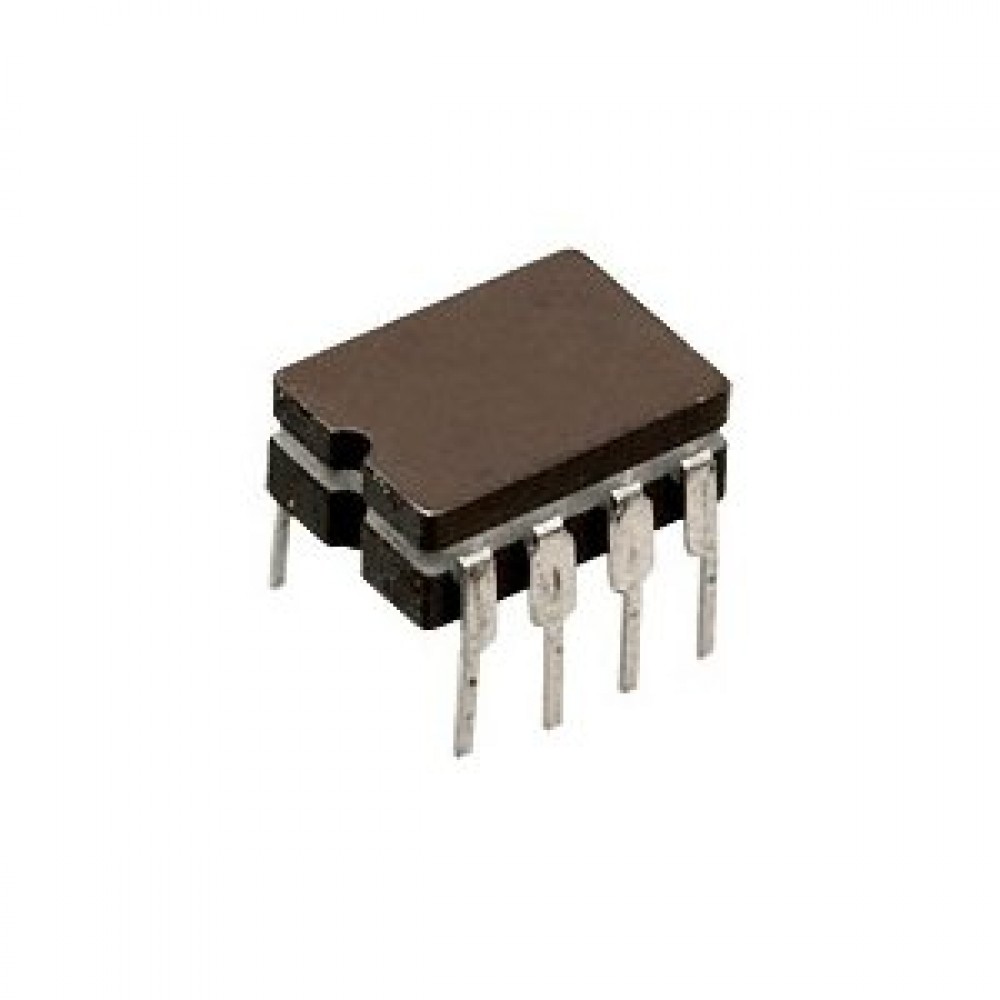

AD712AQ, Операционный усилитель, 4 МГц
Код товара: 169027
Изображения служат только для ознакомления
Цена от:
4 229,04 руб.
Описание AD712AQ
The AD712AQ is a Precision High Speed BiFET Dual Operational Amplifier offers high performance. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and bipolar operational amplifiers. The superior AC and DC performance of this operational amplifier makes it suitable for active filter applications. With a slew rate of 16V/µs and a settling time of 1µs to ±0.01%, the AD712 is ideal as a buffer for 12-bit digital-to-analog converters (DACs) and analog to digital converters (ADCs) and as a high speed integrator. The settling time is unmatched by any similar IC amplifier. The combination of excellent noise performance and low input current also makes it useful for photo diode preamps. Common-mode rejection of 88dB and open-loop gain of 400V/mV ensures 12-bit performance even in high speed unity-gain buffer circuits.
• Settles to 0.01% in 1.0µs
• Surface mount
| Тип усилителя | с входным каскадом на полевых транзисторах JFET |
| Кол-во каналов | 2 |
| Скорость нарастания выходного сигнала, В/мкс | 20 |
| Полоса пропускания -3 дБ, МГц | 4 |
| Токовое смещение на входе, нА | 0.025 |
| Напряжение смещения на входе, мкВ | 300 |
| Ток собственного потребления, мА | 5 |
| Выходной ток на канал, мА | 25 |
| Напряжение питания однополярное(+)/двуполярное (±), В | ±4.5...18 |
| Рабочая температура, °C | -40…+85 |
| Корпус | cdip-8 (0.300 inch) |
| Вес, г | 1 |
AD712.pdf
