59000320

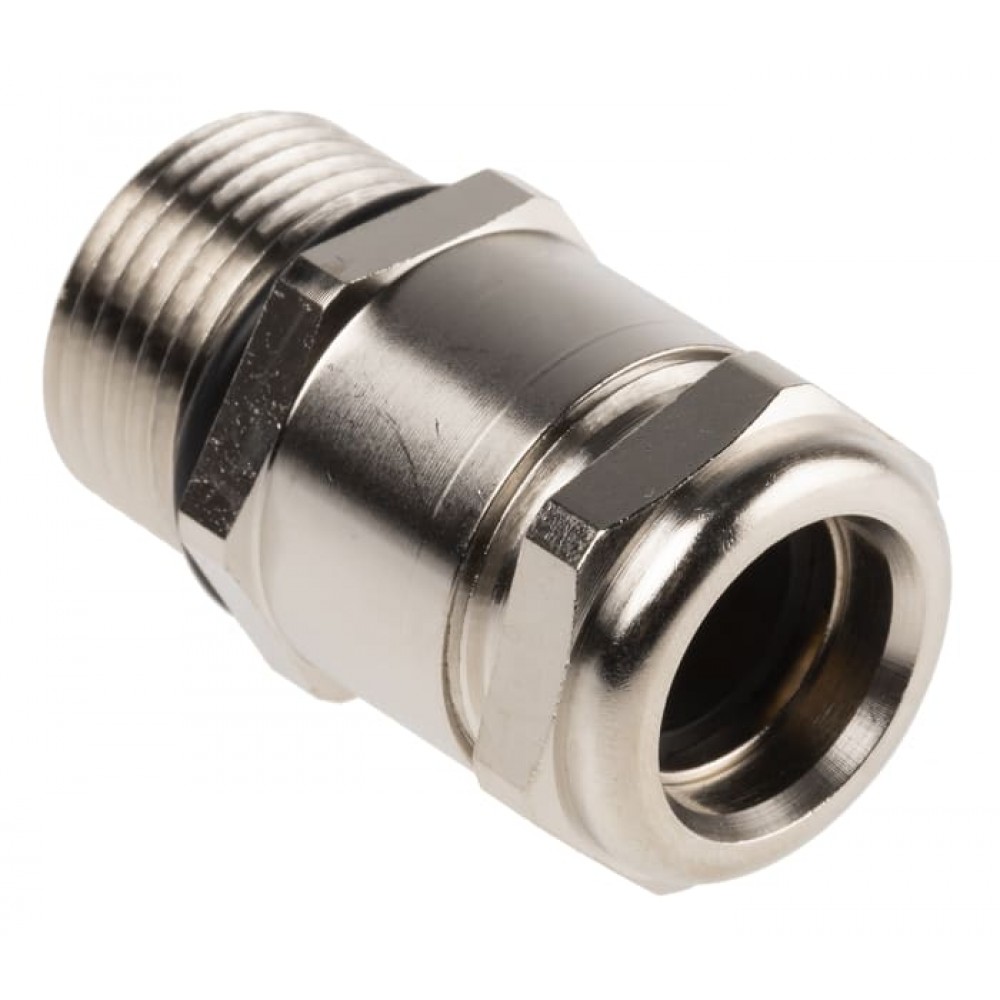

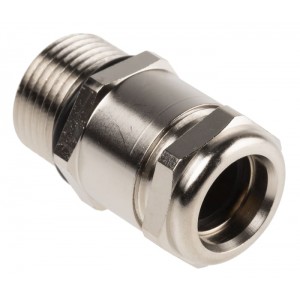

Lapp EMC SHVE Cable Glands From Lapp, the EMC SHVE cable gland can be used to terminate and secure cables in environments that require EMC earthing. With a robust nickel plated brass construction, the gland offers excellent protection, and has a wide clamping range to provide optimum strain relief to different cable sizes.

The cable gland also features a nitrile rubber sealing and o-ring for excellent environmental protection.

Features and Benefits

• EMC Protection
• Robust Construction
• IP68 Protection
• Operating Temperature -30°C to +80°C

Applications

Able to be applied with conduit, junction boxes and machine housing, this cable gland provides EMC earthing wherever there is risk of interference by electrical interference fields, such as;

• Medical Engineering
• Frequency convertors
• Measurement and control

Environment

This cable gland is sealed to IP68, which means it has excellent resistance to dust and particle ingress, and is waterproof up to shallow submersion. This means it is suitable for use in harsh industrial environments and certain outdoor applications.
