22.2609-25
Код товара: 10840884
Цена от:
143,22 руб.
Описание 22.2609-25

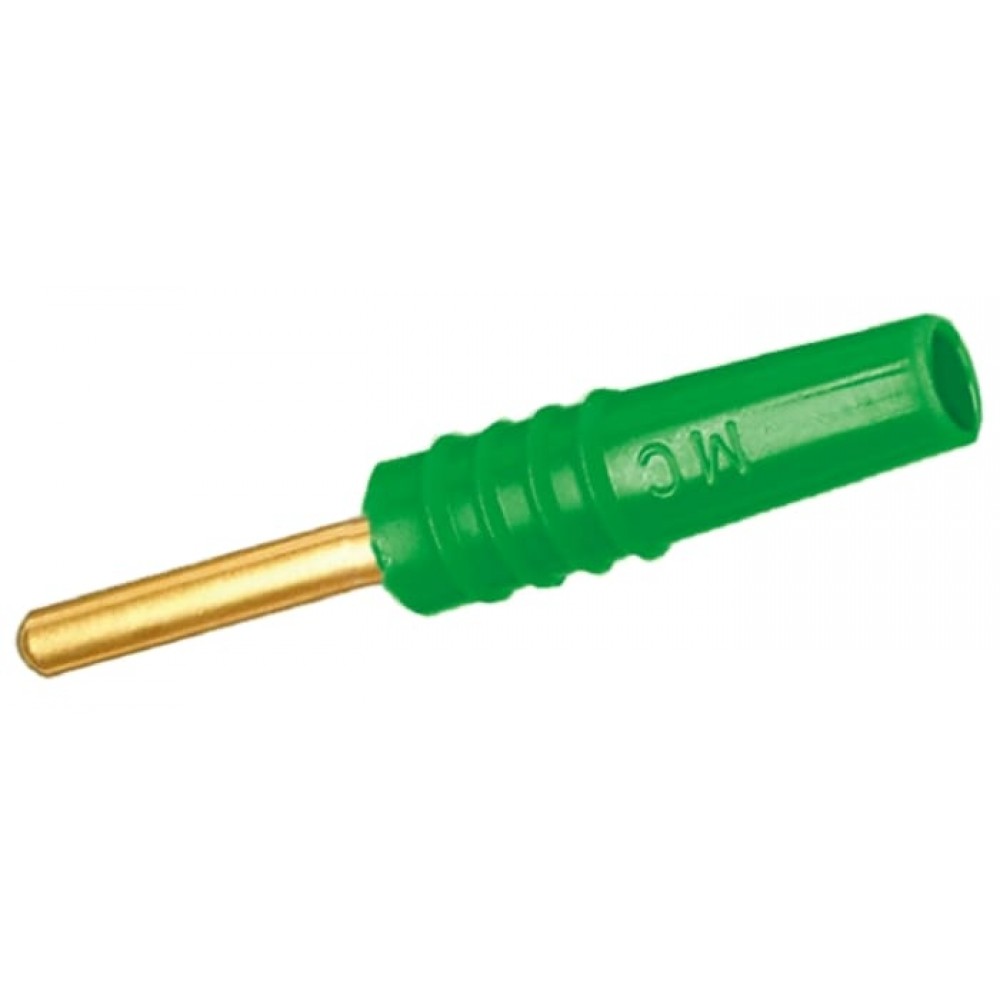

Multi-Contact SLS2-S Series Rigid Inline 2 mm Plugs Multi-Contact SLS2-S series rigid inline 2 mm plug connectors are for the self assembly of test leads to your own specification and test lead application. These 2mm diameter gold plated inline plugs have a rigid contact with solder bucket connection and the press fit rigid insulator body allows for a maximum cable diameter of 2.1 mm, suitable for many applications that call for a 2 mm diameter plug connector. The test plug insulator is assembled over an associated cable prior to soldering into the solder bucket, it is then a press fit over the 2 mm plug tang to finalise and complete the SLS2-S inline plug connector assembly.
Brand | Staubli |
---|---|
Цвет | Зеленый |
Тип соединителя | Вилка |
Метод оконцовки | Припой |
Номинальное напряжение | 30 V, 60 V dc |
Номинальный ток | 10A |
Покрытие контактов | Золотой |
Длина | 27мм |
Тип | Штекер типа «банан» |
Размер разъема | 2mm |
Страна происхождения | CH |
