17112.5
Код товара: 10840646
Цена от:
182,31 руб.
Описание 17112.5

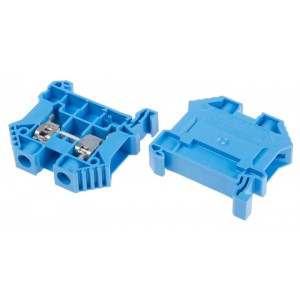

Standard Feed Through - Pluggable Cross Connection System A range of standard feed through DIN Rail terminals with an easy to operate screw connection mechanism that can connect solid and flexible wires, with or without wire-end ferrules. The pluggable insulated cross connection system allows for time saving and cost effective distribution of potentials in different terminal blocks compared to a screw cross connection system. A benefit of this improved system is that adjacent terminals of two different sizes can be cross connected. The 2 cross connection channels allow for an infinite number of terminals to be daisy chained. The earth terminals can be clipped on to the DIN rail without the need for screws. This range of standard terminals has an improved upper temperature range of 120°C. The screw head of the standard terminals is completely mounted into the body so that the metal parts cannot slip out when tightening the screw of the terminal.
Brand | RS Pro |
---|---|
Серия | SRK |
Размер провода | 10 → 6 AWG |
Цвет | Синий |
Количество уровней | Двойной |
Метод оконцовки | Винт |
CSA кабеля | 10мм² |
Номинальный ток | 85A |
Номинальное напряжение | 1 кВ |
Шаг | 10.1мм |
Минимальная рабочая температура | -40°C |
Максимальная рабочая температура | +120°C |
Страна происхождения | DE |
