Описание 214663-003

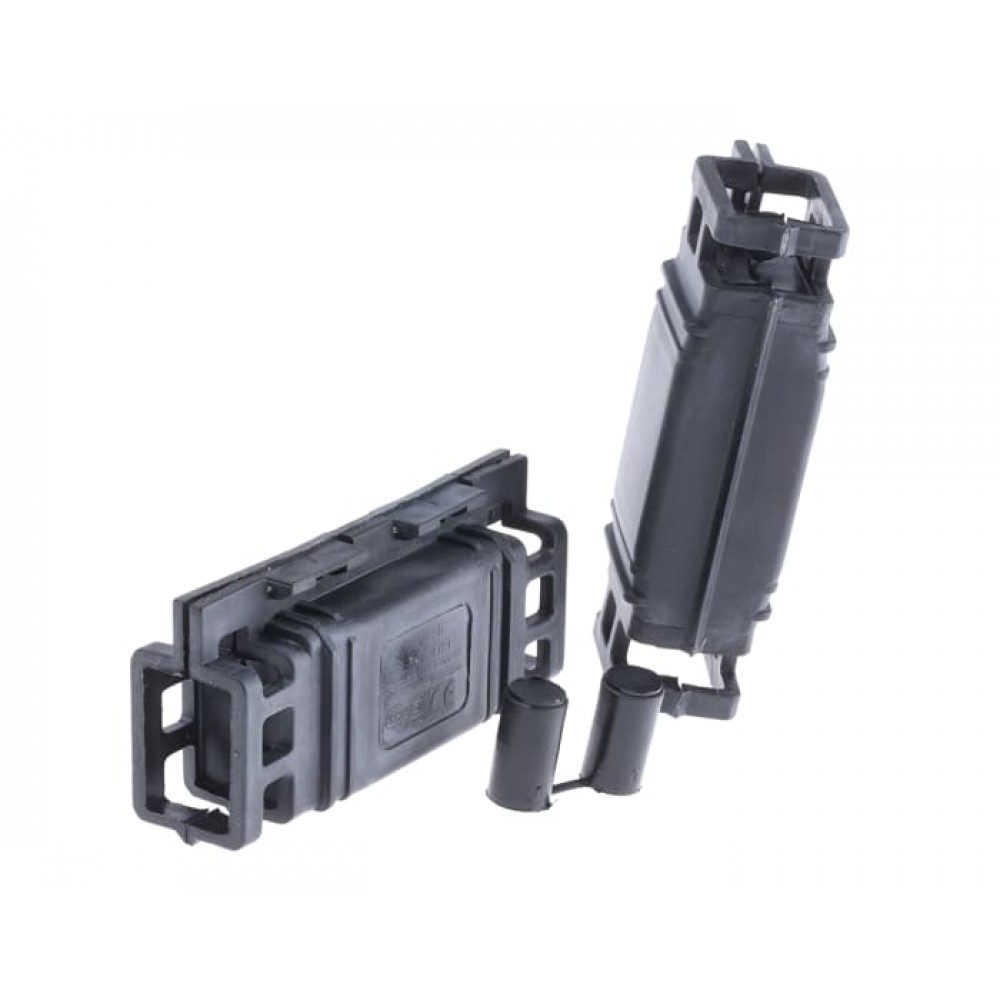

Clik Joint Cable Jointing Kit The Raytech CLIK -FIRE is a fast, ready to use joint for 0.6/1 kV extruded cables. Formed by a robust case which is pre-filled with a suitable gel, which snaps closed to provide fast and easy installation. Available in 2 versions, branch connection and straight/branch connection, both are tested in accordance with the main international specifications, also with repeated flexing and torsion tests and immersion in water. The joints have been declared to conform to the mechanical and sealing specifications required for plastic cable accessories. Both the joints and their components have no shelf life, are chemically inert and therefore completely safe to use. The connections are re-enterable even after long working periods. Made of self-extinguishing components the joints are flame retardant.
| Brand | Raytech |
|---|---|
| Применение | Неэкранированный |
| Количество сердечников | 2 |
| Размеры | 95 x 43 x 28мм |
| В комплект входит | Кабельные стяжки, инструкции, наполнители на основе пластмассы, предварительно заполненный корпус |
| Размер кабеля | 2 x 1.5 mm², 2 x 2.5 → 6мм² |
| Тип соединения | Несколько ответвлений |
| Материал | Комплект деталей, предварительно заполненных гелем |
| Страна происхождения | IT |
