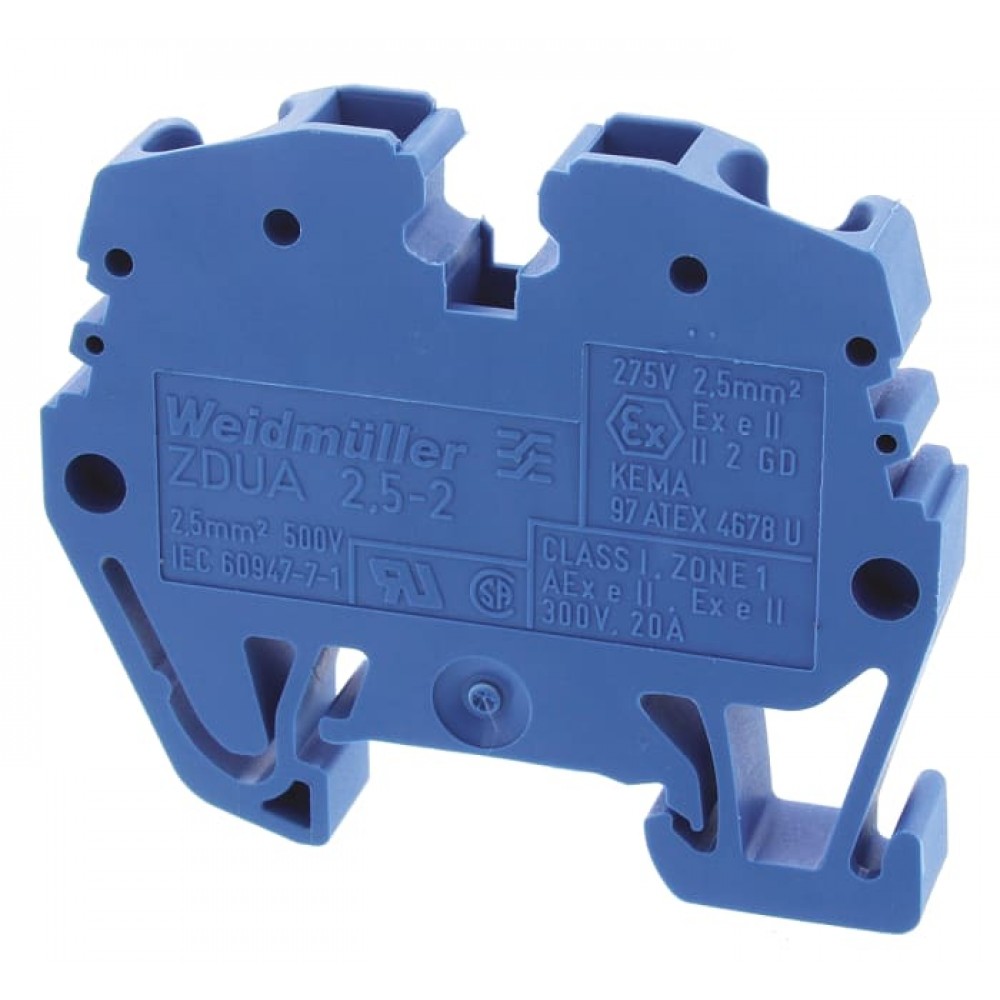

ZDUA 2.5-2 BL -1720930000
ZDUA 2.5-2 BLUE MINIBLOCK,2.5SQ.MM
Артикул:
ZDUA 2.5-2 BL -1720930000
Производитель:
Описание ZDUA 2.5-2 BL -1720930000
Weidmuller Mini-modular Terminal Blocks Z Series Modular terminals with tension clamp connections – the Z-Series – were specially designed to meet customers requirements: compact size, generous marking surfaces, integral test point, cross-connection options within the Z-Series and to other Weidmuller modular terminals.
The Z-Series terminals have a wide clamping range and can accommodate one or two cross-connection channels. The plug-in standard cross-connections enable potentials to be distributed over any number of terminals.
Brand | Weidmuller |
---|---|
Серия | ZDUA |
Размер провода | 26 → 12 AWG |
Цвет | Синий |
Количество уровней | Одинарный |
CSA кабеля | 2.5мм² |
Номинальный ток | 30A |
Номинальное напряжение | 500 В |
Минимальная рабочая температура | -50°C |
Максимальная рабочая температура | +120°C |
