53015060+53019060
Код товара: 10806529
Цена от:
742,53 руб.
Описание 53015060+53019060

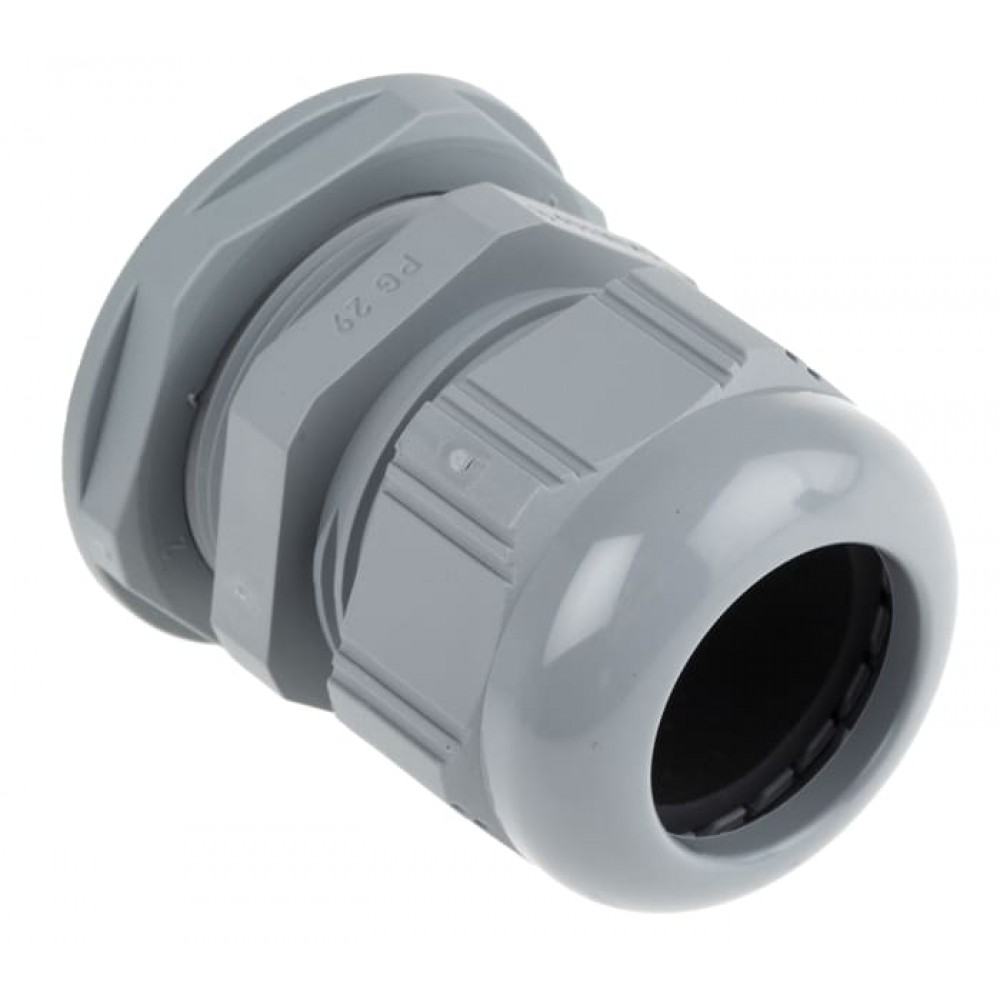

Skintop IP68 PG Nylon Gland From Lapp, the Skintop ST series of cable glands have a tough polyamide construction, and offer a high degree of environmental protection. Whether youre connecting to panels, junction boxes or machinery casing, these cable glands are an easy-to-install solution in cable management.
With a simple screw-on design, the Skintop ST series ensures fast assembly times, and offer a variable clamping range with excellent strain relief. This series of glands have PG measurements.
These cable gland also feature a high degree of temperature, mechanical and oil resistance. Coupled with their permanent vibration protection, this makes them ideal for use with heavy machinery in industrial environments.
Features and Benefits
Easy to Install
Wide Clamping Range
PG Measurements
IP68, 5 bar Protection
Mechanical Resistance
Temperature Resistance
Oil Resistance
Chemical Resistance
Vibration Protection
Applications
The Skintop ST series of PG cable glands can be used where ever wires and cables need to be inserted into panel-style housings through pre-bored holes. Their space saving design makes them ideal for;
Machine and Equipment Manufacturing
Photovoltaic and Solar Electric Technology
Control and Automation Technology
Environment
These cable glands are sealed to IP68 and have a 5 bar pressure rating. This means they have excellent protection against dust ingress and are waterproof even up to shallow submersion. As such, they are suitable for use in harsh environments and even some open air applications.
Accessories
Skintop ST cable glands can be used with corresponding PG sized nylon locknuts.
444-2688 is a Skintop Locknut, grey, PG7, IP68
444-2694 is a Skintop Locknut, grey, PG9, IP68
444-2717 is a Skintop Locknut, grey, PG11, IP68
444-2723 is a Skintop Locknut, grey, PG13.5, IP68
444-2739 is a Skintop Locknut, grey, PG16, IP68
444-2745 is a Skintop Locknut, grey, PG21, IP68
444-2751 is a Skintop Locknut, grey, PG29, IP68
444-2830 is a Skintop Locknut, black, PG7, IP68
444-2846 is a Skintop Locknut, black, PG9, IP68
444-2852 is a Skintop Locknut, black, PG11, IP68
444-2874 is a Skintop Locknut, black, PG13.5, IP68
444-2880 is a Skintop Locknut, black, PG16, IP68
444-2896 is a Skintop Locknut, black, PG21, IP68
444-2903 is a Skintop Locknut, black, PG29, IP68
Brand | Lapp |
---|---|
Размер резьбы | PG29 |
Материал | Полиамид |
Максимальный диаметр кабеля | 25мм |
Минимальный диаметр кабеля | 14мм |
Цвет | Серый |
Степень защиты | IP68 |
Минимальная рабочая температура | -20°C |
Максимальная рабочая температура | +100°C |
Серия | Skintop ST |
Контргайка в комплекте | Да |
Страна происхождения | DE |
