500450

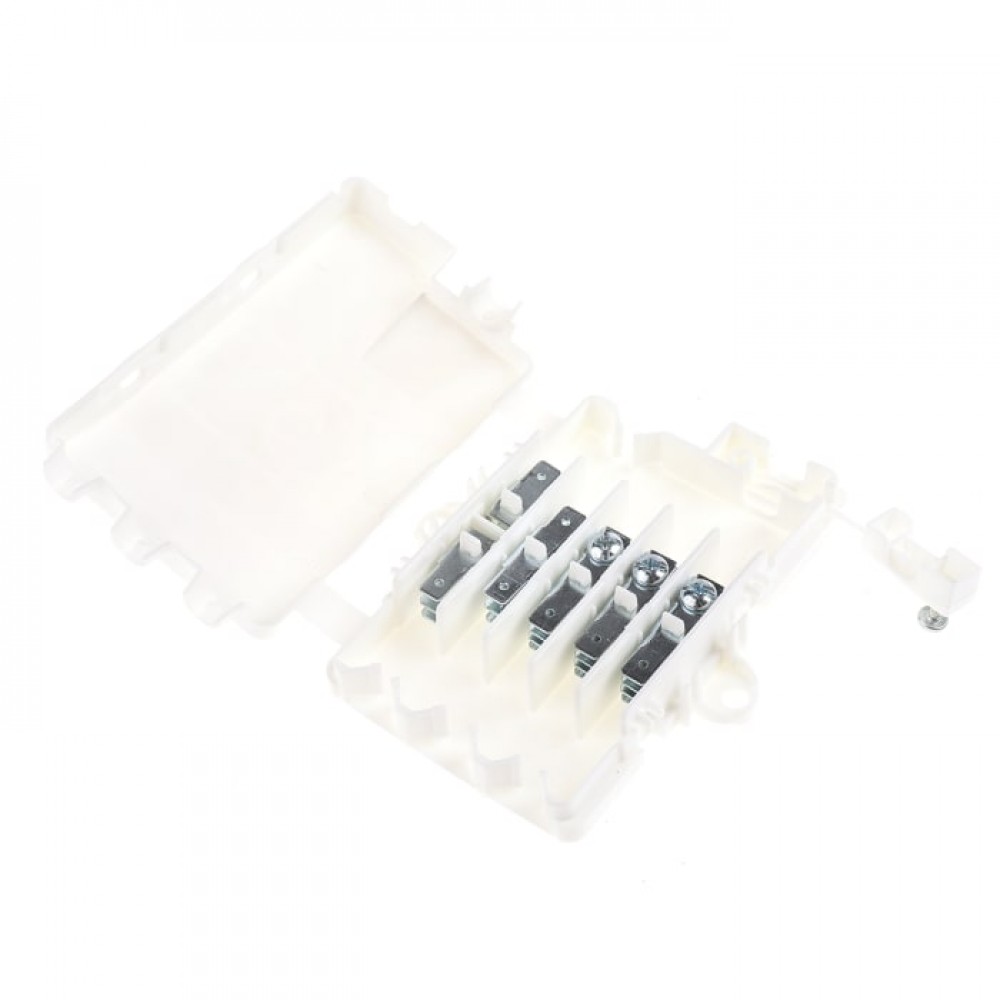

Multi-purpose Terminal Box A multi-purpose terminal box that houses six poles. First three poles are marked E,L & N for mains fixing and are screw and/or tab fixing. Output for these poles are 4tabs per pole. Three spare poles are also provided, each having three fixing tabs. Mains input is via a screw cable clamp and 3 cable grip ports are available for fitting up to three output cables. A spare cable grip port on the input is also provided. The cover snaps into position and can only be opened by levering snap points with a screwdriver. Box can be mounted via two fixing ears. Rated at 400V.10A the box is self extinguishing white polymide to UL94V-2 and IEC 695-2 to 850ºC. Operating temperature is 125ºC max.
