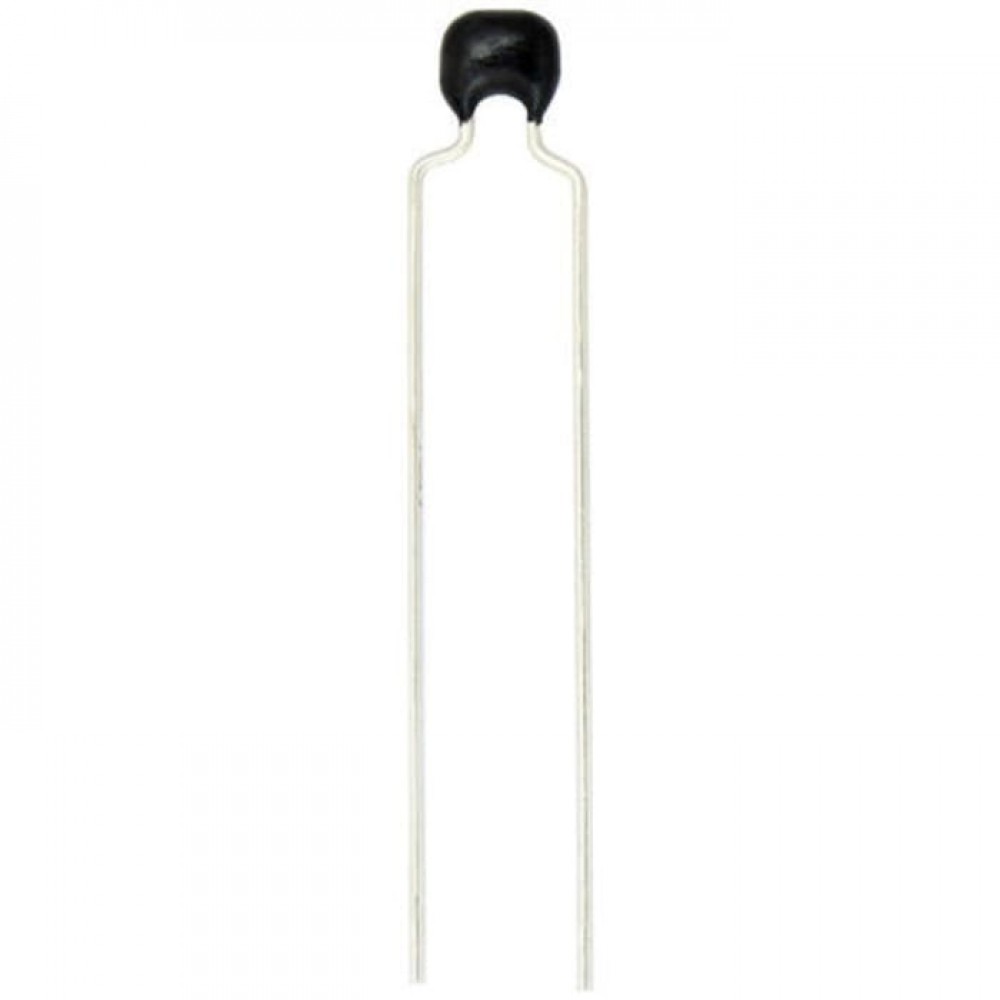

K123J20COGF63H5H
Код товара: 10751190
Цена от:
14,10 руб.
Описание K123J20COGF63H5H
Vishay K...H Series High Operating Temperature Multilayer Ceramic Capacitors (C0G HOTcaps) K…H multilayer ceramic capacitors from Vishay are AEC-Q200 qualified and suitable for the harshest automotive operating conditions. These MLCCs feature an unmatched maximum operating temperature of +175°C, and are constructed from a stable C0G dielectric. These radial ceramic capacitors have a capacitance change of ±330 ppm/K between -55°C and +175°C. Providing a new standard of performance and reliability, the HOTcap range from Vishay is produced with a unique wet build process and noble metal electrodes.
Featuring 100% tinned copper clad leads, straight leads or crimped leads are available, with spacing of 2.5 mm or 5 mm. Vishay K…H high operating temperature MLCCs also feature UL 94 V-0 flame retardant epoxy resin.
| Brand | Vishay |
|---|---|
| Емкость | 12нФ |
| Напряжение | 50В пост. тока |
| Тип монтажа | Монтаж на плату в отверстия |
| Диэлектрический | C0G |
| Допуск | ±5% |
| Размеры | 5.1 x 5.1 x 3.2мм |
| Длина | 5.1мм |
| Глубина | 5.1мм |
| Высота | 3.2мм |
| Серия | K-H Series |
| Максимальная рабочая температура | +175°C |
| Минимальная рабочая температура | -55°C |
| Тип клеммы | Радиальный |
| Интервал между выводами | 5 mm |
| Страна происхождения | CN |
