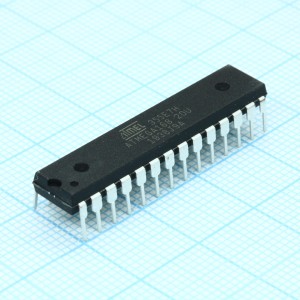

ATMEGA168-20PU, Микроконтроллер AVR 16K-Флэш-память/1K-ОЗУ/512-ЭППЗУ + 8x10 АЦП, электропитание 2,7...5,5В
Код товара: 105883
Изображения служат только для ознакомления
Цена от:
676,70 руб.
Технические параметры
Описание ATMEGA168-20PU
The ATMEGA168-20PU is a 8-bit high-performance, low-power AVR RISC-based Microcontroller Unit combines 16kB ISP flash memory, 1kB SRAM, 512B EEPROM, an 8-channel/10-bit A/D converter (TQFP and QFN/MLF) and debugWIRE for on-chip debugging. The device supports a throughput of 20 MIPS at 20MHz and operates between 2.7 to 5.5V. The current consumption is a function of several factors such as operating voltage, operating frequency, loading of I/O pins, switching rate of I/O pins, code executed and ambient temperature. The dominating factors are operating voltage and frequency. The difference between current consumption in power-down mode with watchdog timer enabled and power-down mode with watchdog timer disabled represents the differential current drawn by the watchdog timer.
• Advanced RISC architecture
• 131 Powerful instructions
• Fully static operation
• Up to 20MIPS throughput at 20MHz
• On-chip 2-cycle multiplier
• High endurance non-volatile memory segments
• Optional boot code section with independent lock bits
• In-system programming by on-chip boot program
• True Read-While-Write operation
• Programming lock for software security
| Серия | avr atmega |
| Ядро | avr |
| Ширина шины данных | 8-бит |
| Тактовая частота | 20 мгц |
| Количество входов/выходов | 23 |
| Объем памяти программ | 16 кбайт (8k x 16) |
| Тип памяти программ | flash |
| Объем EEPROM | 512 x 8 |
| Объем RAM | 1k x 8 |
| Наличие АЦП/ЦАП | ацп 6x10b |
| Встроенные интерфейсы | i2c, spi, uart |
| Встроенная периферия | brown-outdetect/reset, por, pwm, wdt |
| Напряжение питания | 2.7…5.5 в |
| Рабочая температура | -40…+85c |
| Корпус | dip-28 (0.300 inch) |
| Вес, г | 4 |
ATmega48_88_168_kr.pdf
