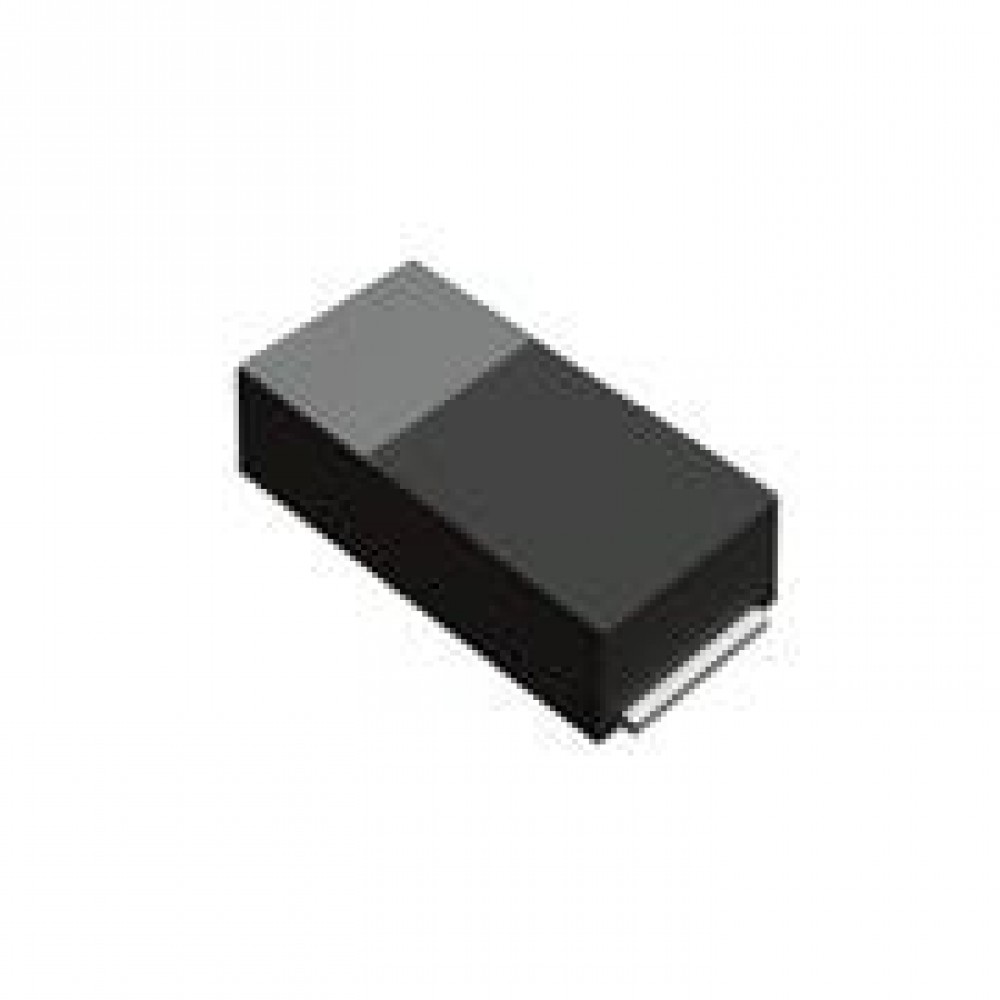

TCTOBL0J157M8R-ZN1, Tantalum Capacitors - Polymer Conductive Polymer Capacitors (Bottom surface electrode : Large capacitance). The TCTOBL use the conductive polymer at the cathode and features ultra-low ESR. Bottom electrode configuration results in the largest capacitance. The compact and low prof
Tantalum Capacitors - Polymer Conductive Polymer Capacitors (Bottom surface electrode : Large capacitance). The TCTOBL use the conductive polymer at the cathode and features ultra-low ESR. Bottom electrode configuration results in the largest capacitance. The compact and low prof
Артикул:
TCTOBL0J157M8R-ZN1
Производитель:
Описание TCTOBL0J157M8R-ZN1
Тип выводов | SMD/SMT |
---|---|
Ёмкость | 150 uF |
Номинальное напряжение постоянного тока | 6.3 VDC |
Максимальная рабочая температура | + 105 C |
Длина | 3.5 mm |
Допустимое отклонение | 20 % |
Серия | TCTO |
Упаковка | Reel, MouseReel, Cut Tape |
ECCN | EAR99 |
Корпус - дюймы | 1411 |
Корпус - мм | 3528 |
Минимальная рабочая температура | 55 C |
Высота | 1.1 mm |
Продукт | Tantalum Organic Polymer Low ESR |
Ширина | 2.8 mm |
Вес изделия | 100 mg |
Эффективное последовательное сопротивление | 35 mOhms |
Ток утечки | 94.5 uA |
Коэффициент затухания, DF | 15 % |
Рег. код произв. | BL Case |
Чувствительный к влажности | Yes |
